Aditya Birla Insulators (A Unit of Grasim Industries Ltd)
+91 33 27623535 +91 33 26729413 +91 2676 223375 abi.export@adityabirla.com abi.domestic@adityabirla.com Visit website
P.O. Meghasar
Halol, Gujarat, 389330
India
Overview
Key Contact Personnel:
Ajit Rajagopalan, CEO ajit.rajagopalan@adityabirla.com
Harleen S. Minhas, CMO harleen.minhas@adityabirla.com
Tushar Balar, Sr. GM – Mktg tushar.balar@adityabirla.com
Harsh Jani, Dy. Manager harsh.jani@adityabirla.com
Chandan Banerjee, Dy. Manager chandan.banerjee@adityabirla.com
Year Founded: 1967
Total Number of Employees: 3651
Quality Certification: ISO 9000 & 14001 & OHSAS 18001 (Both Plants). Rishra Plant: SA 8000
Total Annual Sales: More than USD 100 million
Percent of Sales in Export Markets: 30%
Major Export Markets Served: Europe, US, Africa, Asia Pacific, Middle East, Central & South America

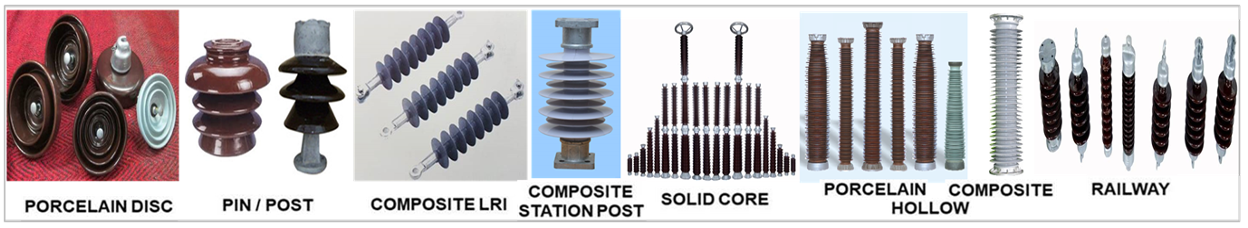

Range of Products Offered: Electrical Insulators: Porcelain and Composite Insulators for High Voltage Applications
Products
Insulators (Porcelain)
Suspension Disc-Type Insulators:
Normal, Open Profile, Semi Fog, Anti fog & Super Fog Type: Mecchanical Strength upto 420 kN for Voltage rating up to 1200 kV, Creepage Distance up to 690 mm, Applicable Standard: IS, IEC, BS, ANSI & Australian Specifications.
Pin Type Insulators:
Up to 69 kV, Mechanical Strength: 10 kN, Creepage Distance: Up to 1080 mm, Applicable Standard: IS, IEC, BS, ANSI, AS and VDE Specifications.
Railway Insulators:
Up to 25 kV as per IS, IEC & RDSO Specifications.
Station Post Insulators:
Up to 1200 kV & Mechanical Strength up to 20 kN and Capacitor Bank Support Insulators having Mechanical strength up to 45 kN as per IS, IEC and ANSI specifications.
Hollow Insulators:
Up to 800 Kv, Mechanical Strength up to 105 kNm for SF6 Circuit Breakers, Instrument Transformers, Condenser Bushings. Maximum height in one unit construction upto 2600 mm. Maximum diameters 775 mm.
Insulators (Composite)
Composite Long Rod Insulators: Up to 765 kV, Mechanical Strength up to 210 kN for creepage distance up to 31 mm/kV as per IS & IEC Specifications.
Hollow Composite Insulators for HV Apparatus:
Manufacture full range from 33 KV to 400 KV class with high quality HTV material For Transformers Bushings, Circuit Breaker –Dead Tank & Live Tank, Cable Terminations, Instrument Transformer – CT, VT & CVT, Surge Arrestors, Capacitors and Generator Circuit Breaker.
Optimized design with special attention to the triple-point protection, Maximum height in one unit construction up to 4000 mm. All requirements of IEC 61462, IEC 62217 met with Standardized high creepage profile
Locations
Location of Manufacturing Plants:
Aditya Birla Insulators (Unit: Halol)
P.O. Meghasar, Taluka: Halol, Dist. Panchmahals, Gujarat 389330 India
Telephone: +91 2676 221002
Telefax: +91 2676 223375
Aditya Birla Insulators (Unit: Rishra)
P.O. Prabhas Nagar, Rishra Dist. – Hooghly, West Begal, 712249 India
Telephone: +91 33 27623535, 26729413
Telefax: +91 33 26722705
Aditya Birla Power Composites Ltd.(Halol)
Reg. Office: Survey No. 158-159, Meghasar,Taluka- Halol,Halol-Kalol Road, Panchmahal, Gujarat, 389330 India
Works: Survey No. 43,45,46, Vil.- Duniya, Taluka – Halol, Halol- Kalol Road, Dist. -Panchmahal, Gujarat, 389350 India.
Telephone: +91 2676 221002
Central Marketing Office (Vadodara)
604, OZONE Tower, Opp. Vadodara Central Mall, Sarabhai Compound, Vadi Wadi, Vadodara (Gujarat), Pin: 390007, India
Telephone: +91 265 2322940
